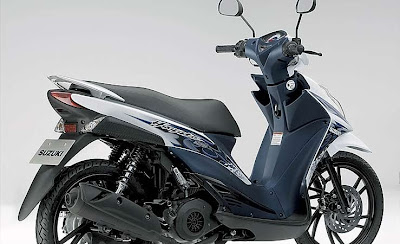

2011 Suzuki Hayate 125









Specification

Framework
Under Type of bone
Telescopic front suspension, threaded spring, oil damper
Swing arm rear suspension, dual tube, threaded spring, oil damper
Hydraulic disc front brakes
Rear Brake Tromol
Front tire size 70/90-16M/C 36P
Rear tire size 80/90-16M/C 43P

Transmission
Dry clutch, automatic, centrifugal type
Super CVT drive system with V-Belt

Engine
Type 4 stroke, SOHC
Cooling air conditioning systems
Number of cylinders 1 (one)
53.5 mm diameter cylinder
Step piston 55.2 mm
Cylinder capacity 124 cc
Compression ratio 9,6:1
Maximum power of 9.6 rpm PS@8.000
Nm@6.000 9.8 rpm Maximum Torque

Carburetors Mikuni BS-26
Air filter paper element
Electric starter and crank system

Electrical
Ignition DC CDI (digital) / spark ignition
NGK spark plug type C6HSA/ND U20FS-U
Accu 12 V (3.5 Ah) / 10HR

Capacity
17.7 liters of luggage under the seat
5 liter petrol tank

Engine oil
Replacement of 1,000 ml
Demolition 1200 ml
