Monday 20 June 2011

2011 Suzuki Satria F150


PT. Indomobil Suzuki Sales (SIS) launched the 2011 Suzuki Satria F150 with some refreshment carried on this Underbone hyper duck.

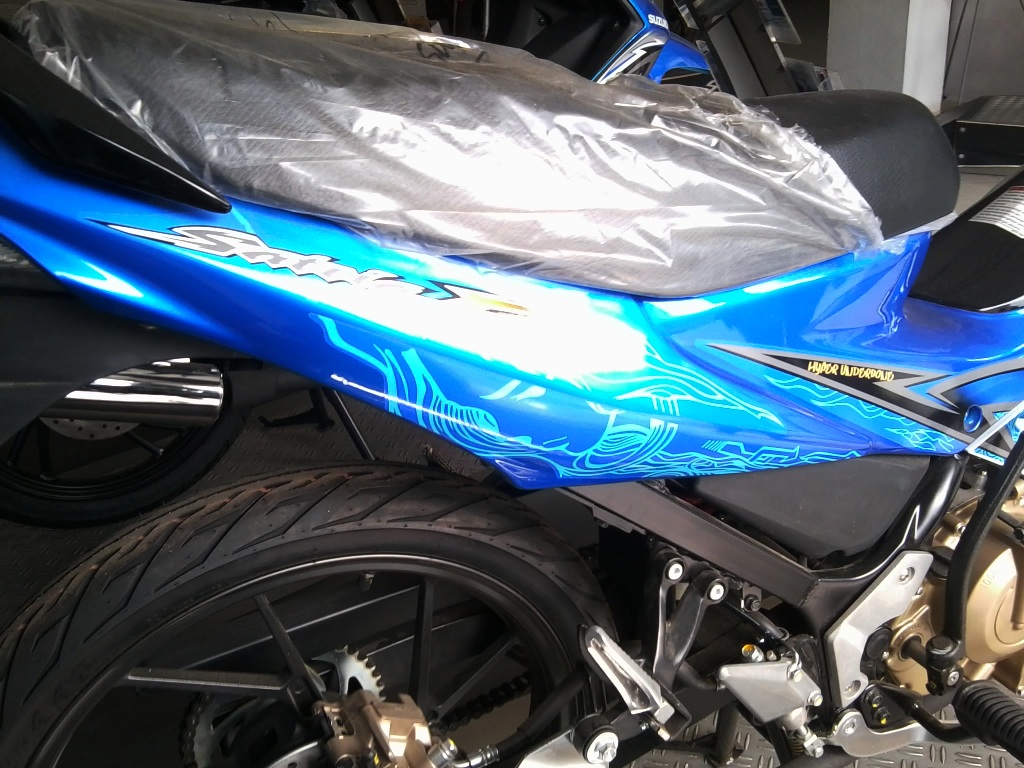

Suzuki Motorcycle to update this color is Black & White, Red and White, Blue and White White Black with striping the new design as well. If we look at the design, striping the back scratches its lines resembling a woman's face. hmm, strange, I guess,, motor guy really but striping girls drawings ..... This may be because now the girls are also many who pake this bike. Girls also want to look cool this motor pake. hahaha ...


For other changes that have adopted this bike features or Automatic Headlight On Aho. So the main lights turn on automatically when the machine is turned on. Aho features support for driving safety as stipulated in the law no. 22 of 2009 section 107.

Despite the changes, the price of Suzuki Satria F150 is still USD 18.565 million (OTR-Jakarta).


Photo Gallery


















Spesification

Dimension :
Overall Length 1945 mm
Overall Width 652 mm
Overall Height 941 mm
Distance Between Wheels As 1280 mm
Distance to Soil Machine 95 mm
Vehicle Weight 95 kg
Seat Height 764 mm

Machine :
Type 4-Tak, DOHC, Air Cooled SACS, 4-valve
Number of Cylinders 1 (one)
Cylinder diameter 62 mm
Step Piston 48.8 mm
Cylinder Capacity 147.3 cm3
Compression Ratio 10.2: 1
Rpm Maximum Power 16 Ps/9.500
Torque kgm / rpm 1.27 / 8.500
Carburetors Mikuni BS 26-187
Air Filter Paper Type
Starter System Electric and Feet
Immersion Oil Lubrication System

Transsmission :
Manual clutch plate wet type compound
Transmission 6 Acceleration
Directions 1 Go Gear down, 5 Go up
Drive Chains DID 428 DS, 122 eyes

Frame :
Suspension Front Telescopic, spiral spring, bearing oil
Rear Suspension Arm swing, spiral spring, bearing oil
Steering angle 45o (Right and Left)
Turn Radius m 2
Brakes Front / Rear Brakes Disc / Disc
Front Wheel Size 70/90 – 17 38S
Rear Wheel Size 80/90 – 17 44S

Electrical System :
CDI Ignition System
NGK Spark plug DENSO CR8E or U24ESR-N
Accu 12 Volt 2.5 Ah 10 HR

Capacity :
4.9 L Fuel Tank
With oil filter replacement 1.100 ml
Engine Oil 1000 ml
